RTAF Museum Ki-55 'More Than' Walkaround Part 1

Thanks to Johan de Wolf and the very kind auspices of his wife Ms. Sasinee Sornimsart and staff of the Royal Thai Air Force Museum Mr. Paitoon Lailerd, Mr Kiatisak Reunak and Ms Jariyaporn Somsaard, Aviation of Japan is privileged to present the photographic results of an unprecedented access session to the museum's surviving Tachikawa Ki-55 'Ida'  trainer, which includes comprehensive coverage of the interior. Here are the first 12 of of a total of 121 photographs.

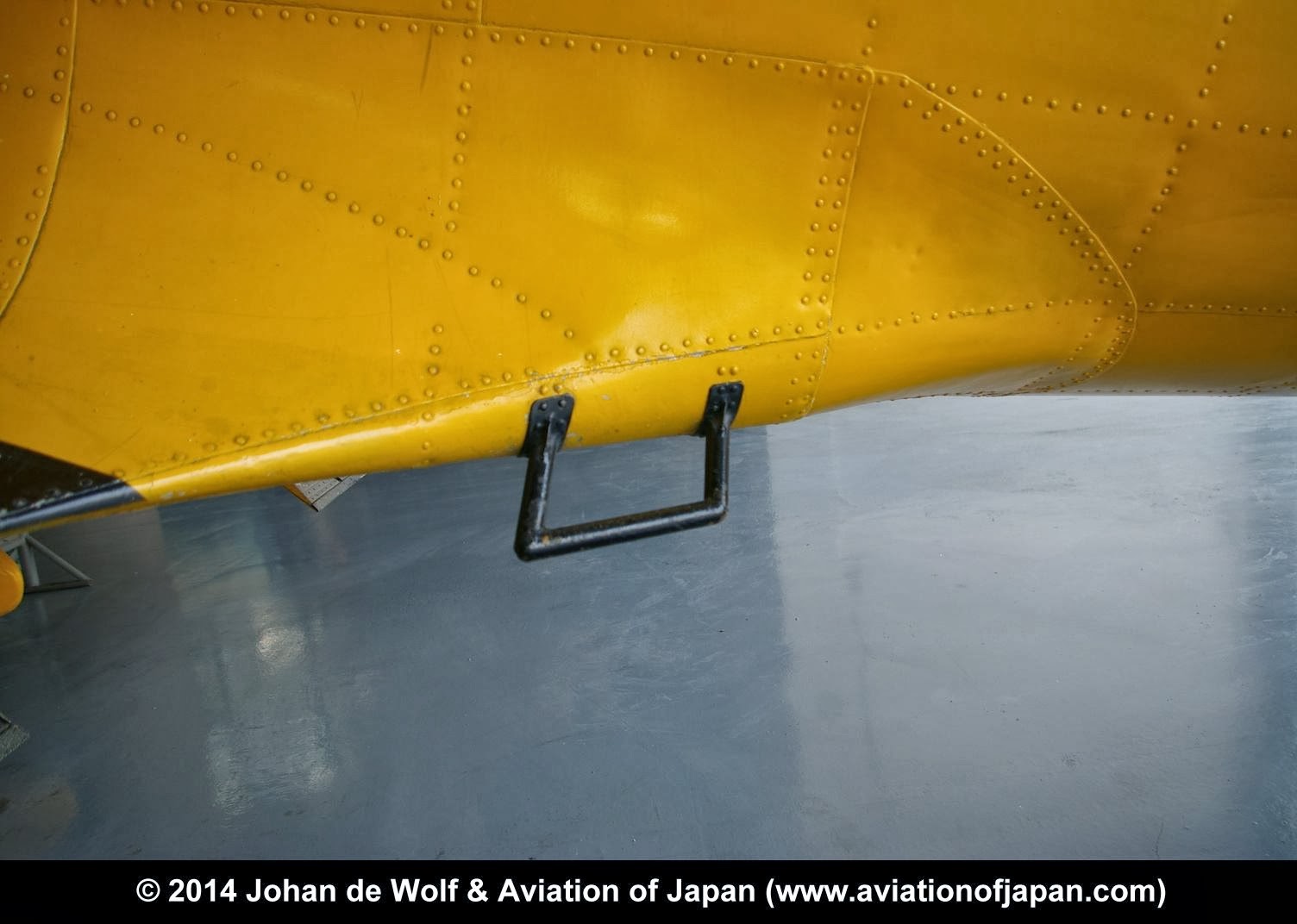

Boarding step - left side wing root only

Boarding access pins -  left side only

Inner flap - left side

Outer flap - left side

Inner flap -  left side

Outer flap -  left side

Outer flap - left side paint surface detail

Inner flap -  left side paint surface detail

Inner flap - left side paint surface detail

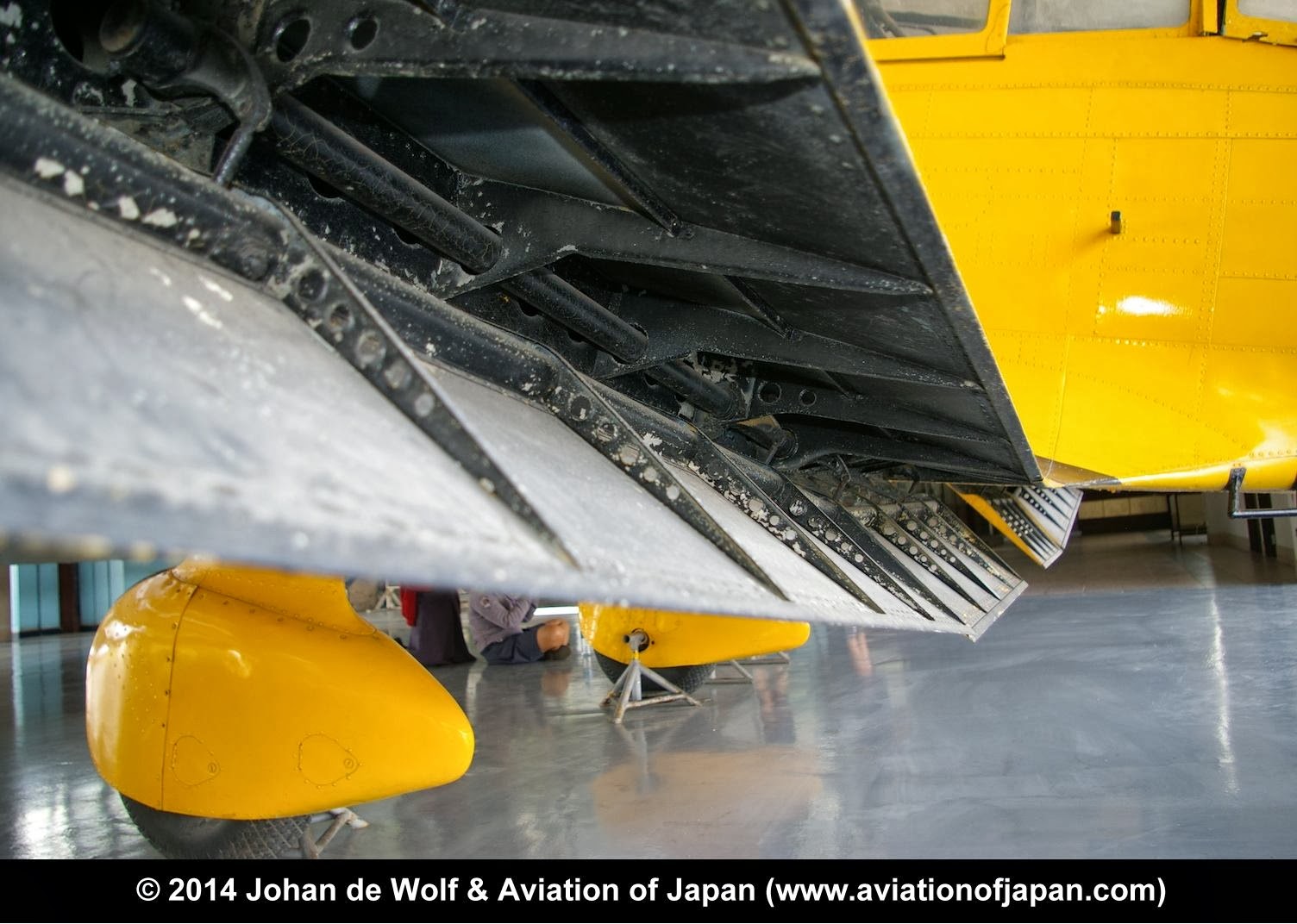

Flap arrangement - left side

Aileron actuator - top surface left wing

Aileron left wing - note prominent diagonal rib pattern and hinge slots

Unfortunately there is currently no large scale kit of the Ki-36/Ki-55 available that would benefit from these details but hopefully that will be rectified in the not too distant future. Colour commentary will be included in subsequent instalments. If referring to or re-posting these images online kindly attribute them © 2014 Johan de Wolf via Aviation of Japan and provide a reciprocal courtesy link to, thank you!

Part 2 of this series may be found here.

Image credits: All © Johan de Wolf
